Inital Design & Development Plan

Goal

Provide a clear, structured roadmap of development milestones, including timeline, design artifacts, and responsibilities.

---

Roadmap with Milestones (4 Weeks)

Week	Focus Area	Tasks / Deliverables
1	Setup & Design	- Set up GitHub repo & CI/CD - Project scaffolding (React + Node + DB) - UI wireframes (Figma) - Architecture diagram
2	Authentication	- Implement sign-up/login/logout - Role-based access (admin, user) - Connect to DB for user storage
3	Core Features	- Live score input (admin) - Real-time updates (WebSocket) - Dashboard for viewers
4	Testing & Feedback	- Unit & integration tests - Usability testing session - Sprint Review demo - Collect & apply feedback

Tools: GitHub, Notion, Figma, Draw.io, Clerk/Auth0, Firebase, Express.js, React, Jest

---

Design Artifacts

• Wireframes → UI mockups for core pages (Login, Dashboard, Match Input, Viewer)
• Architecture Diagram → High-level system overview (Frontend ↔ Backend ↔ Firebase)
• UML Diagrams → Use Case Diagram + Component Diagram

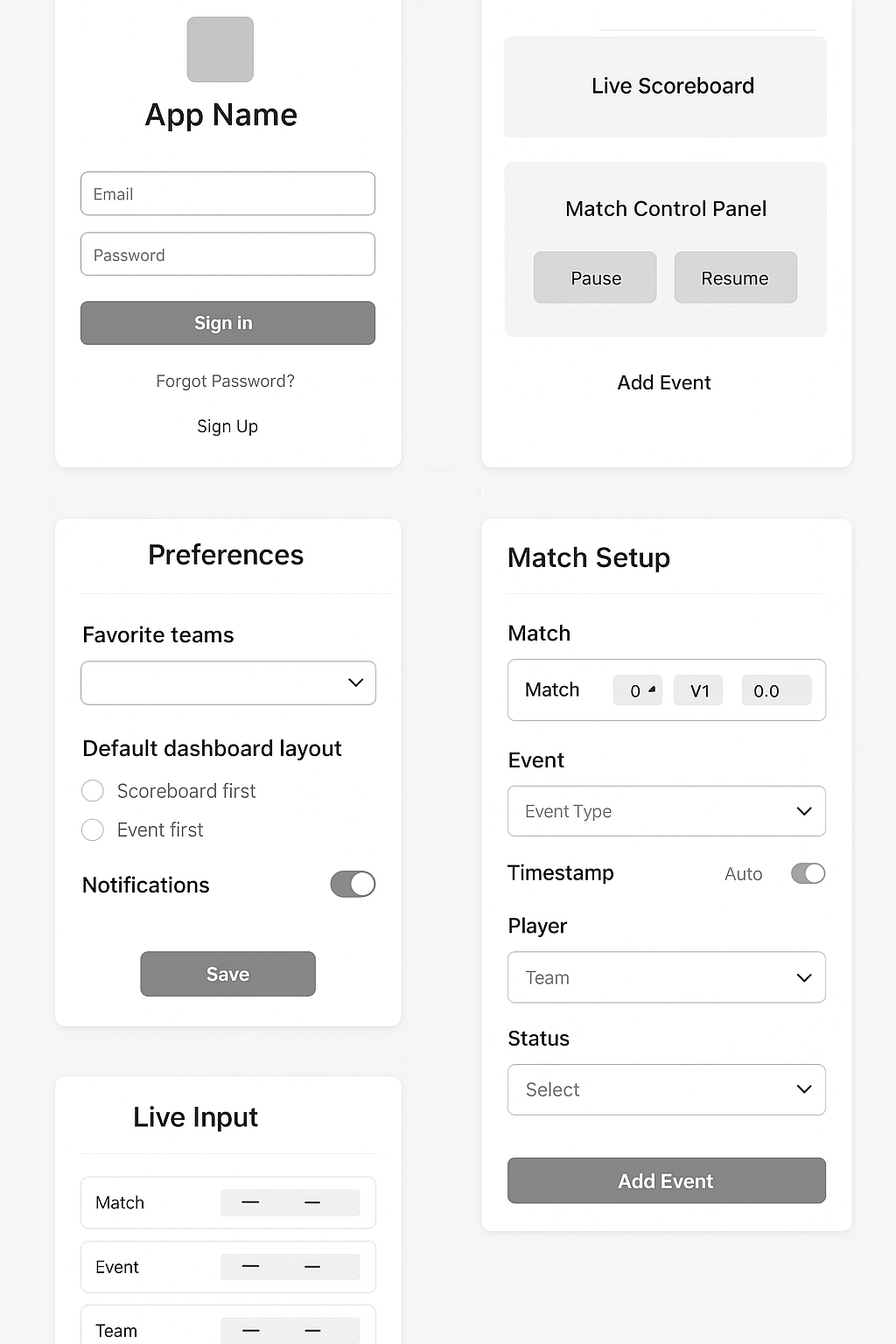

Wireframes

---

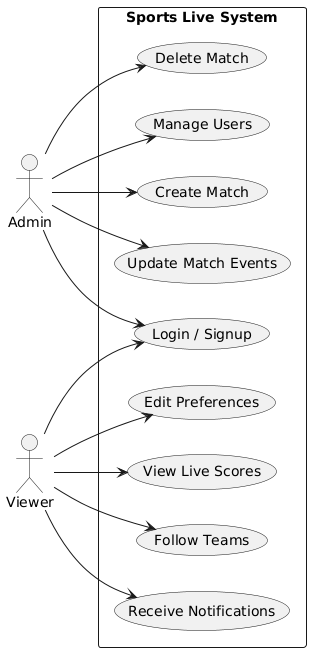

Use Case Diagram

Shows how admins, viewers, and guests interact with the system.

Main Use Cases:

Admin → Add/Edit/Remove Matches, Manage Users, Push Updates

Viewer → View Live Scores, Follow Teams, Receive Notifications

---

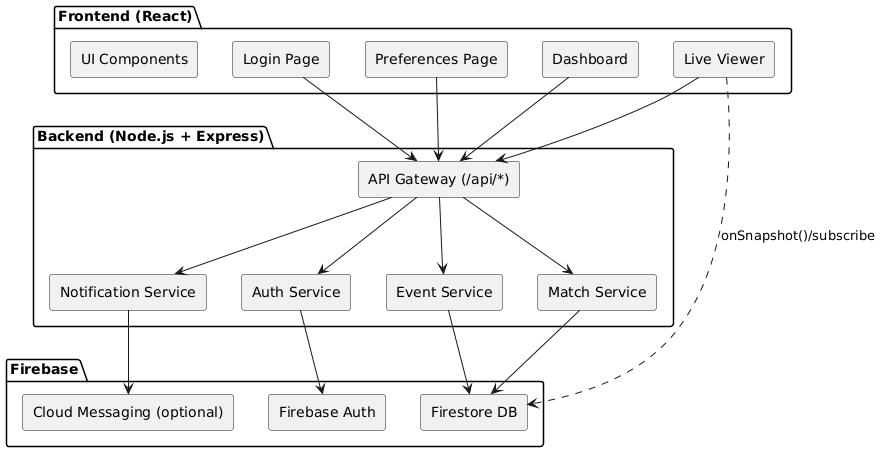

Component Diagram

High-level breakdown of frontend, backend, and Firebase integration.

Components:

a) Frontend (React)

• Pages (Login, Dashboard, Viewer)
• Reusable Components (MatchCard, ScoreBoard)
• Talks to backend via REST APIs and WebSockets

b) Backend (Node.js + Express)

• Auth Service
• Match Service
• Database (Firebase)
• Firestore: Matches, Users, Events

---

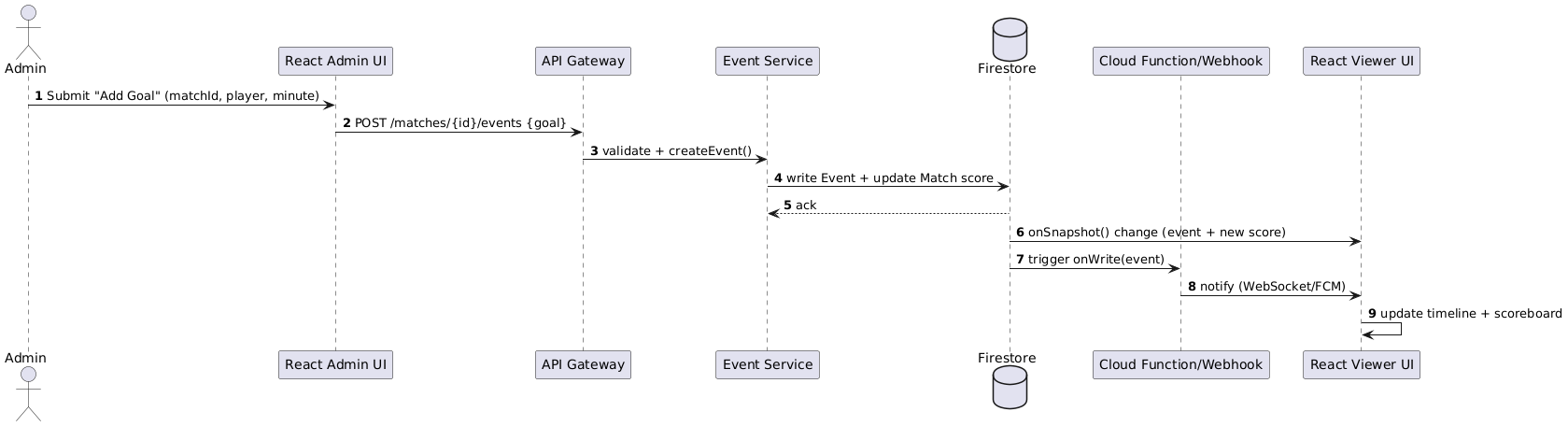

Sequence Diagram

Example: Admin adds a goal → Viewers see it live.

---

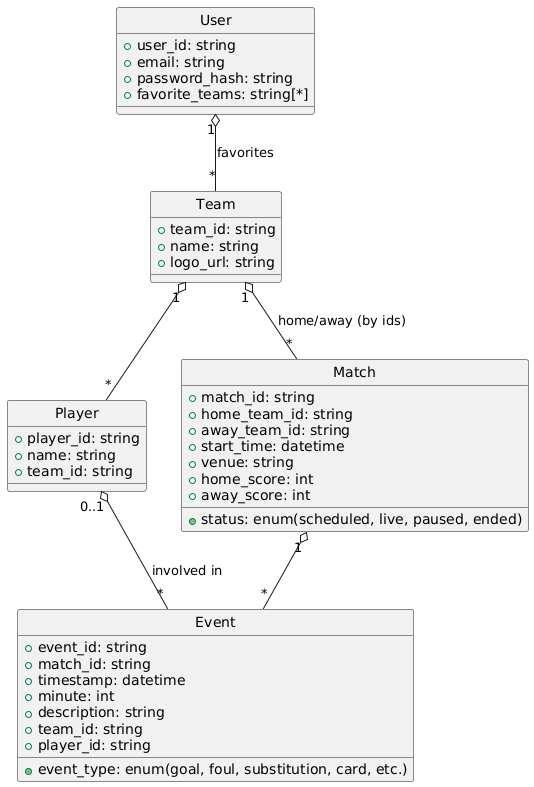

Data Model (ER Diagram)

Entities: User, Team, Match, Event, Player.

---

Deployment Diagram

Local dev, Azure hosting, Firebase integration.

---

---

System Architecture Overview

a) Frontend (React)

• Displays live match data, timelines, and match setup forms
• Pages: Login, Dashboard, Preferences
• Talks to backend via REST APIs and WebSockets

b) Backend (Node.js + Express)

• Handles API requests from frontend
• Manages authentication, CRUD for matches, events
• Pushes live updates via WebSockets

c) Database (Firebase)

• Stores matches, events, players, teams, and user preferences

---

Backend API Endpoints

Auth

• POST /auth/login → User login
• POST /auth/signup → Create new user
• POST /auth/logout → End session

Matches

• POST /matches → Create new match
• GET /matches → Get all matches
• GET /matches/:id → Get single match
• PUT /matches/:id → Update match info
• DELETE /matches/:id → Delete match

Events

• POST /matches/:id/events → Add event (goal, foul, substitution, etc.)
• PUT /matches/:id/events/:eventId → Edit event
• DELETE /matches/:id/events/:eventId → Remove event

Feed

• GET /matches/:id/feed → Get current match state
• GET /matches/:id/timeline → Get chronological list of events

Preferences

• GET /users/:id/preferences → Get user preferences
• PUT /users/:id/preferences → Update preferences

---

Database Schema

Users

• user_id (PK)
• email
• password_hash
• favorite_teams

Teams

• team_id (PK)
• name
• logo_url

Players

• player_id (PK)
• name
• team_id (FK)

Matches

• match_id (PK)
• home_team_id (FK)
• away_team_id (FK)
• start_time
• venue
• status (scheduled, live, paused, ended)

Events

• event_id (PK)
• match_id (FK)
• timestamp
• event_type (goal, foul, substitution, etc.)
• description
• team_id (FK, optional)
• player_id (FK, optional)

---

Frontend Components (React)

Pages

1. LoginPage

   • Inputs: Email, Password
   • Buttons: Sign In, Forgot Password, Sign Up

2. Dashboard

   • TopNav: Logo, User Profile, Logout button
   • Sidebar: Links to Live Matches, Match Setup, Event Timeline, Preferences
   • Main Area:
     • LiveScoreboard: Teams, logos, score, timer, possession
     • EventTimeline: Vertical list of events
     • MatchControlPanel: Pause/Resume, Add Event form

3. PreferencesPage

   • Select favorite teams
   • Choose default layout
   • Toggle notifications

Reusable Components

• MatchCard
• EventItem
• TeamSelector
• TimeDisplay
• FormModal (add/edit matches/events)

---

Integration Flow

1. Admin/Operator creates a match via /matches
2. Operator adds live events manually via /matches/:id/events
3. Backend stores the event in Events table
4. Backend updates Matches table with new score/time
5. Frontend fetches state via /matches/:id/feed
6. WebSocket pushes live updates instantly
7. Preferences API customizes what each user sees

---

Development Workflow

This guide covers the development process for the Sports Live application.

Development Modes

Mock Data Mode (Recommended for Development)

npm start

• Uses mock sports data
• No API costs
• Fast development

Live Data Mode (For Testing)

npx vercel dev

• Uses real Football-Data.org API
• Requires API token setup
• Live sports data

Environment Setup

Create a .env.local file:

REACT_APP_CLERK_PUBLISHABLE_KEY=your_clerk_key
FOOTBALL_API_TOKEN=your_football_api_token

Testing

Run the test suite:

npm test

Building

Create production build:

npm run build
